Automating Config As Code changes

When you go the automation route, everything must be automated... even adding teams(organizations) to automation platform. The same goes for deletion and changes like enabling EDA in config as code. In these pages you can find some examples how to do this.

Building Execution environments

As you probably know, we need execution evironments to run our ansible code. Sometimes we need a special execution environment and we need to build it by hand, or do we?

When you build an execution-environment, you need to install ansible-builder, create a venv and meny things more. The process starts with the creation of a "execution-environment.yml" which holds the requirements to be built into the execution-environment image. To build the EE from code, we will be templating all that is needed for the build.

While building an EE image requires a base image to build on top of and most people use a EE image as base, we use a minimal container image and add the ansible-runner ourselves. This way we have full control of what is in the image.

The first you might build by hand, but as we like to do everything in code, we want to build the execution environment from code.

Gitlab repository

To store the definition of an execution environment in code, we need a repository and a pipeline.
In this repository we store the following structure:

.
├── ee_vars.yml
├── files
│   └── dummy.file
├── host_vars
│   ├── hub_dev
│   │   └── hub_dev.yml
│   └── hub_prod
│       └── hub_prod.yml
├── inventory.yml
├── main.yml
├── README.md
└── templates
    ├── bindep.txt.j2
    ├── create_image.sh.j2
    ├── execution-environment.yml.j2
    ├── requirements.txt.j2
    └── requirements.yml.j2

There are all file we need in this repository. You might find you're missing the pipeline itself, but we store this in an other location for security and to keep pipelines uniform.

We will go through the files and explain how to configure this to build an EE. The EE that I will be building here has a number of collections in it to run a playbook.

The files

We now describe each file and its contents.

ee_vars.yml

The ee_vars.yml file holds everything that is added to the base image we want in the execution-environment. It holds variables to fill the templates when the playbook is run by the pipeline.

---
# Put the contents of the files in here
# requirements.txt  == ee_python
# requirements.yml  == ee_collections
# bindep.txt        == ee_system
#
use_ansible_cfg: true
ee_image_name: ee-demo-image
ee_python:
  - requests
  - python-gitlab

ee_collections:
  - community.general;==8.5.2
  - ansible.posix
  - ansible.windows

ee_system:
  - python3-systemd [platform:rpm]
  - python3-pip [platform:rpm]

basic_image: quay.io/rockylinux/rockylinux:9.5-minimal

ee_version: 1.0

Above the contents of the ee_vars.yml file, as you can see we have collected all the variables that will be needed to create an execution-environment together in one file.
There is a slight change in the specification for the version of a collection, be aware that there is a semicolon between the collection name and the version. This is done so the templating can detect if there is a version number.

files/dummy.file

The file directory needs to be present and git tends to remove it when there is nothing in this directory. This will cause proplems during recovery, so ensure there is always a dummy file in here. During the pipeline run the ansible.cfg created during the base_config run, will be copied here, to be used during builds.

host_vars/hub_/hub_.yml

This file holds the variables to connect with the rhaap environment:

---
ee_ah_host: <rhaap_fqdn_for_env>
ee_validate_certs: false
registry_username: <redhat_account>  # only needed when downloading from redhat.io
registry_password: <redhat_password> # only needed when downloading from redhat.io
ahub_username: ee_upload
ahub_password: <ee_upload_password>

These are used by the code to connect to the environment. The user for automation hub is created using configuration as code and is a member of the hub_ee group and has the rights to upload new execution environments. If you are not using this user, you will need to use the admin account.

inventory.yml

The inventory to pass to the ansible playbook.

---
dev:
  hosts:
    hub_dev:
prod:
  hosts:
    hub_prod:

It just translates the hosts to the variables for the connection.

templates/bindep.txt.j2

Template to create the file bindep.txt from the variables in ee_vars.yml if present.

{% for package in ee_system %}
{{ package }}
{% endfor %}

templates/requirements.txt.j2

Template to create the file requirements.txt from the variables in ee_vars.yml.

{% for package in ee_python %}
{{ package }}
{% endfor %}

templates/requirements.yml.j2

Template to create the file requirements.yml from the variables in ee_vars.yml.

---
collections:
{% for collection in ee_collections %}
{% set name = collection|split(';') %}
  - name: {{ name[0] }}
{% if name[1] is defined %}
    version: "{{ name[1] }}"
{% endif %}
{% endfor %}

Here we see that the code evaluates if there is a semi colon in the variable and ajusts the output accordingly.

templates/create_image.sh.j2

Template to create the script that will build the EE in the end.

ansible-builder build --tag {{ ee_image_name }}
podman tag localhost/{{ ee_image_name }} {{ ee_ah_host }}/{{ ee_image_name }}:{{ ee_version }}
podman login --tls-verify=false -u {{ ahub_username }} -p {{ ahub_password }} {{ ee_ah_host }}
podman push --tls-verify=false {{ ee_ah_host }}/{{ ee_image_name }}:{{ ee_version }}

In most cases, you will see that a virtual env is created before the build is started. We don't do this, we run this in a docker container that is created for this purpose. And because we use a container, everything is creared as we stop the build and remove the container. The definition of this contianer can be found later in this document.

templates/execution-environment.yml.j2

The template that defines the execution-environment from beginning to end.

---
version: 3
build_arg_defaults:
  ANSIBLE_GALAXY_CLI_COLLECTION_OPTS: "-c"

{% if (ee_collections|length > 0) or (ee_python|length > -0) or (ee_system|length > 0) %}
dependencies:
  ansible_core:
    package_pip: ansible-core>=2.16,<=2.17
  ansible_runner:
    package_pip: ansible-runner
  python_interpreter:
    package_system: "python311"
    python_path: "/usr/bin/python3.11"
  exclude:
    system:
      - openshift-clients
    python:
      - systemd-python
{% endif %}
{% if ee_collections|length > 0 %}
  galaxy: requirements.yml
{% endif %}
{% if ee_python|length > 0 %}
  python: requirements.txt
{% endif %}
{% if ee_system|length > 0 %}
  system: bindep.txt
{% endif %}

images:
  base_image:
    name: {{ basic_image }}

options:
  package_manager_path: /usr/bin/microdnf

additional_build_files:
    - src: files/ansible.cfg
      dest: configs

options:
  container_init:
    package_pip: dumb-init>=1.2.5
    entrypoint: '["dumb-init"]'
    cmd: '["csh"]'
  package_manager_path: /usr/bin/microdnf
  relax_passwd_permissions: false
  skip_ansible_check: true

additional_build_files:
  - src: files/ansible.cfg
    dest: configs

additional_build_steps:
  prepend_base:
    - COPY _build/configs/ansible.cfg /etc/ansible/ansible.cfg
    - ADD _build/configs/ansible.cfg /home/runner/.ansible.cfg
  append_final:
    - RUN ls -la /etc

This template will take any rhel like container as base image and create an execution-environment when templated together with the ee_vars.yml. This will be done by the playbook main.yml.

main.yml

The main playbook that will be run by the pipline.

---
- name: Playbook to create custom EE
  hosts: "{{ instance | default('dummy') }}"
  connection: local
  gather_facts: false

  tasks:
    - name: Include the definition of the ee
      ansible.builtin.include_vars:
        file: ee_vars.yml

    - name: Copy ansible.cfg to home dir
      ansible.builtin.copy:
        src: ansible.cfg
        dest: ~/ansible.cfg
        mode: '0600'
      when: use_ansible_cfg

    - name: Template the execution-environment.yml
      ansible.builtin.template:
        src: execution-environment.yml.j2
        dest: execution-environment.yml
        mode: '0644'

    - name: Template the bindep.txt
      ansible.builtin.template:
        src: bindep.txt.j2
        dest: bindep.txt
        mode: '0644'
      when: (ee_collections is defined) and (ee_collections | length > 0)

    - name: Template the requirements.yml
      ansible.builtin.template:
        src: requirements.yml.j2
        dest: requirements.yml
        mode: '0644'
      when: (ee_system is defined) and (ee_system | length > 0)

    - name: Template the requirements.txt
      ansible.builtin.template:
        src: requirements.txt.j2
        dest: requirements.txt
        mode: '0644'
      when: (ee_python is defined) and (ee_python | length > 0)

    - name: Template the creation script
      ansible.builtin.template:
        src: create_image.sh.j2
        dest: create_image.sh
        mode: '0700'

    - name: Create the ee_image
      block:
        - name: Create the image
          ansible.builtin.command: ./create_image.sh
          register: _create_output
          changed_when: _create_output.rc == 0

      rescue:
        - name: Show the output if any error
          ansible.builtin.debug:
            var: _create_output.stdout_lines

      always:
        - name: Fail the play if any error
          ansible.builtin.fail:
            msg: "Build failed, read the error above to find why"
          when: _create_output.rc != 0

THis playbook templates all files and runs the creation script, which will build and upload the execution environment into your automation hub. If any error occurs, it will show you the output in the pipline jib log in gitlab.

build image

The docker image to run this build in, is defined as follows:

Dockerfile:

FROM registry.access.redhat.com/ubi9/python-311:latest
USER root

COPY files/requirements.yml /tmp/requirements.yml
COPY files/ansible.cfg /etc/ansible/ansible.cfg
RUN pip install ansible-core ansible-lint ansible-builder pyyaml && \
    dnf -y install podman findutils fuse3-devel fuse-overlayfs && \
    dnf clean all
RUN ansible-galaxy collection install -r /tmp/requirements.yml
RUN /usr/bin/chmod 777 -R /opt/ && \
    /usr/bin/update-ca-trust

Build and upload this file to the local image registry to be able to pull this in your pipeline.

pipeline

For testing you can place the .gitlab-ci.yml in your repository:

# Pull the ee-builder-image from local registry
image: docker.homelab:5000/ee-builder-image:1.0

# List of pipeline stages
stages:
  - build_ee_image
  - lint_and_merge

lint_after_commit:
  tags:
    - shared
  stage: lint_and_merge
  rules:
    - if: '$CI_COMMIT_REF_NAME != "dev"
           && $CI_COMMIT_REF != "test"
           && $CI_COMMIT_REF != "accp"
           && $CI_COMMIT_REF != "prod"'
  script:
    - echo "From pipeline - Start linting on '$CI_COMMIT_REF_NAME'"
    - HOST_VAR=$(echo "AUTOM_HOST_${CI_COMMIT_BRANCH}" | tr [:lower:] [:upper:])
    - sshpass -p "${PASSWORD}" scp -o StrictHostKeyChecking=no ansible@$(printenv $HOST_VAR):/etc/ansible/ansible.cfg files/ansible.cfg
    - ansible-lint

build_ee_image:
  tags:
    - shared
  stage: build_ee_image
  rules:
    - if: '($CI_COMMIT_BRANCH == "dev"
           || $CI_COMMIT_BRANCH == "test"
           || $CI_COMMIT_BRANCH == "accp"
           || $CI_COMMIT_BRANCH == "prod")
           && $CI_PIPELINE_SOURCE == "push"
           && $CI_COMMIT_MESSAGE =~ /Merge branch/i'
  script:
    - echo "From pipeline - Start build image on '$CI_COMMIT_REF_NAME' Environment"
    - HOST_VAR=$(echo "AUTOM_HOST_${CI_COMMIT_BRANCH}" | tr [:lower:] [:upper:])
    - sshpass -p "${PASSWORD}" scp -o StrictHostKeyChecking=no ansible@$(printenv $HOST_VAR):/etc/ansible/ansible.cfg files/ansible.cfg
    - ansible-playbook main.yml
      -i inventory.yaml
      -e instance=hub_$CI_COMMIT_REF_NAME

NOTE For this pipeline to work correctly, you should add some CICD variables to the repositories that use this pipeline. The variables are: - PASSWORD # the password for the account that copies the ansible.cfg - AUTOM_HOST_DEV # the fqdn for the development automation platform - AUTOM_HOST_PROD # the fqdn for the production automation platform If you have more environemnts, you'll need more variables.

The 'sshpass' line of code ensures you have a current ansible.cfg during the build of your EE, the other option is to add an ansible.cfg to the repository, but it has to be updated every time you run the base_config of the configuration as code.

Here is all you need to create EE's from an automated pipeline.
Later, we will show the code to generate this repository from rhaap, using a job-template.

SSL issues running your EE

In case of private CA certificates/authorities you could get some ssl certificate verfication issues. This is not caused by the ansible builder and can be solved quite easy:

Ensure the CA certificate is registered and trusted on all execution nodes of the ansible platform.
As an execution environment is a container, it depends on the host to provide the trusted certificates.

Adding custom collections to automation hub

In this chapter, we're going to talk about automatically uploading and publishing your own ansible collections within your own organization. To publish these collections outside the organization is beyond the scope of this chapter. What we are going to do, however, is automate the publication and construction of the collection according to the GitOps methodology. We apply the solution described below for each collection, so each collection gets its own git repository and its own pipeline (centralized git location, the code is the same).

Index
- Conditions
- Namespace
- The git repository
- The Pipeline

Conditions

In order to be able to automatically upload a collection in the automation hub part of rhaap 2.5, there are a number of conditions that must be met: - A namespace must be available - Your collection must have a name in the namespace - Your collection is stored in a git repository - The repository has a pipeline - The pipeline uses its "own" user for the hub

Namespace

Create a namespace to store your collections and do this via the configuration as code (see base_configuration_gateway_and_hub), you should already know how to do that. Think carefully about this name, it must fit in with the naming within your organization.

The git repository

As with all GitOps repositories, it will be stored in git and has a branch for each environment. The repository will have the following directory structure:

├── CHANGELOG.md
├── docs
├── galaxy.yml
├── group_vars
│   └── all
├── host_vars
│   └── hub_dev
│   └── hub_prod
├── inventory.yaml
├── meta
├── plugins
├── README.md
├── roles
│   ├── role_1
│   │   ├── defaults
│   │   ├── files
│   │   ├── handlers
│   │   ├── meta
│   │   ├── README.md
│   │   ├── tasks
│   │   └── templates
│   ├── role_2
│   │   ├── defaults
│   │   ├── files
│   │   ├── meta
│   │   ├── README.md
│   │   ├── tasks
│   │   └── templates
└── upload_collection.yml

Most of the structure is imposed by the galaxy structure for the collections. But there are a few things that are needed to take care of the automation for gitops. These additions are as follows (and you probably already recognize them, if you've read the previous chapter carefully): - group_vars - host_vars - inventory.yaml - upload_collection.yml - A .gitlab-ci.yml will be added for GitLab

galaxy.yml

### REQUIRED
# The namespace of the collection. This can be a company/brand/organization or product namespace under which all
# content lives. May only contain alphanumeric lowercase characters and underscores. Namespaces cannot start with
# underscores or numbers and cannot contain consecutive underscores
namespace: linux

# The name of the collection. Has the same character restrictions as 'namespace'
name: web

# The version of the collection. Must be compatible with semantic versioning
version: 1.0.5
# The path to the Markdown (.md) readme file. This path is relative to the root of the collection
readme: README.md

# A list of the collection's content authors. Can be just the name or in the format 'Full Name <email> (url)
# @nicks:irc/im.site#channel'
authors:
  - Your Name <your_email>


### OPTIONAL but strongly recommended
# A short summary description of the collection
description: Collection to deploy apache and ipvs loadbalancers

# Either a single license or a list of licenses for content inside of a collection. Ansible Galaxy currently only
# accepts L(SPDX,https://spdx.org/licenses/) licenses. This key is mutually exclusive with 'license_file'
license:
  - GPL-2.0-or-later

# The path to the license file for the collection. This path is relative to the root of the collection. This key is
# mutually exclusive with 'license'
license_file: ''

# A list of tags you want to associate with the collection for indexing/searching. A tag name has the same character
# requirements as 'namespace' and 'name'
tags:
  - linux
  - infrastructure

# Collections that this collection requires to be installed for it to be usable. The key of the dict is the
# collection label 'namespace.name'. The value is a version range
# L(specifiers,https://python-semanticversion.readthedocs.io/en/latest/#requirement-specification). Multiple version
# range specifiers can be set and are separated by ','
dependencies:
  'community.general': '>=6.5.0'
  'ansible.posix': '>=1.5.2'

# The URL of the originating SCM repository
repository: git@gitlab.homelab/collections/linux.web.git

# The URL to any online docs
documentation: https://gitlab.homelab/collections/linux.web/README.md

# The URL to the homepage of the collection/project
homepage: https://gitlab.homelab/collections/linux.web

# The URL to the collection issue tracker
issues: http://example.com/issue/tracker

# A list of file glob-like patterns used to filter any files or directories that should not be included in the build
# artifact. A pattern is matched from the relative path of the file or directory of the collection directory. This
# uses 'fnmatch' to match the files or directories. Some directories and files like 'galaxy.yml', '*.pyc', '*.retry',
# and '.git' are always filtered
build_ignore:
  - .gitlab-ci.yml
  - host_vars
  - inventory.yml
  - upload_collection.yml
  - group_vars

inventory.yaml

The inventory tells the code where to find the automation hub to upload the collection into.

---
dev:
  hosts:
    hub_dev:
test:
  hosts:
    hub_test:
accp:
  hosts:
    hub_accp:
prod:
  hosts:
    hub_prod:

group_vars/all/ah_collections.yml

In this inventory file, the variables needed for the playbook are generated at the start of the play.

---
ah_configuration_async_retries: 10
ah_configuration_async_delay: 2
ah_collections:
  - name: "{{ galaxy_vars.name }}"
    namespace: "{{ galay_vars.namespace }}"
    version: "{{ galaxy_vars.version }}"
    path: "{{ coll_file }}"
    wait: false
    overwrite_existing: false
    state: present
...

As you can see, there is nothing to configure in this file, the content is determined by variables. The origin of these variables is described below. The host_vars folder, contains the files with the login details for the automation hub, these can be copied directly from the automation hub configuration as a code repository pipeline, with a modification that the user is modified for the collection upload.

host_vars/hub_dev/hub_auth.yml

In this file the credentials for logging into the automation hub are set. We use a separate account to automate the building and uploading the custom collections, so this will not disrupt things by invalidating tokens. This account is created using the base_config from the configuration as code. The team this account is a member of, has the rights to upload collections into hub. If you are not working with such an account, you will need to do this using the admin account.

---
ah_host: 'https://rhaap26.homelab'
ah_validate_certs: false
ah_username: <coll_upload_user>    # vaulted vaulue
ah_password: <coll_upload_passwd>   # vaulted value

host_vars/hub_dev/hub_dev.yml

Additional vars for handling the collection upload through the collection.

---
hosts: localhost
ah_configuration_async_dir: /opt/app-root/src/.ansible_async/

This was needed to let the collection find the response file and report the corrected exit code.

The Pipeline

How it works: - With each new commit in the repository, the pipeline is triggered. - The file .gitlab-ci.yml is read by the pipeline. - The actions in this file will be performed in order. - Old files are deleted - A new version of the collection is being built - The "upload_collection.yml" playbook starts. - The playbook searches for the file containing the collection - Reads the galaxy.yml as galaxy_vars, populating the variables in ah_collections.yml - Start the upload to the private automation hub - Publishes the new version (if any)

.gitlab-ci.yml

# Defaults
image: docker.homelab:5000/ansible-image:latest

# List of pipeline stages
stages:
 -linting
 - Build collection

linting:
  tags:
    - shared
  stage: linting
  rules:
    - if: '$CI_COMMIT_REF_NAME != "dev"
           && $CI_COMMIT_REF_NAME != "test"
           && $CI_COMMIT_REF_NAME != "accp"
           && $CI_COMMIT_REF_NAME != "prod"'
  script:
    - echo "From pipeline - Start linting on '$CI_COMMIT_REF_NAME'"
    - wget -O ~/ansible.cfg http://web.dev.lab:81/dev_ansible.cfg
      # Role satellite is excluded for persistent module error
    - ansible-lint
      --exclude .gitlab-ci.yml
      --exclude host_vars/
      --exclude roles/role_infrastructure_satellite/tasks/main.yml

configure-automation-hub:
  tags:
    - gitlab-runner
  stage: Build collection
  rules:
    - if: '($CI_COMMIT_BRANCH == "dev"
          || $CI_COMMIT_BRANCH == "test"
          || $CI_COMMIT_BRANCH == "accp"
          || $CI_COMMIT_BRANCH == "prod")
           && $CI_PIPELINE_SOURCE == "push"
           && $CI_COMMIT_MESSAGE =~ /Merge branch/i'
  script:
    - wget -O ~/ansible.cfg http://web.dev.lab:81/${CI_COMMIT_BRANCH}_ansible.cfg
    - echo "Remove old versions of the collection"
    - find . -name "*.tar.gz" -exec rm {} \;
    - echo "Build the collection"
    - ansible-galaxy collection build
    - echo "Push the collection to automationhub"
    - ansible-playbook upload_collection.yml
      -i inventory.yaml
      -e instance=hub_$CI_COMMIT_REF_NAME
      -e branch_name=$CI_COMMIT_REF_NAME
      --vault-password-file <(echo ${VAULT_PASSWORD})

The above code is triggered with every merge to the branches mentioned under "rules" and will execute the code under "script". Here you can see that an ansible playbook is being run to perform the configuration.

There are a number of variables used in the call of the playbook, these do not come out of the blue, but this is where they come from: |Variable| Description| |---|---| |$CI_COMMIT_REF_NAME|This is an internal variable that is given to each pipeline task by gitlab, the content of this variable is the branch for which the pipeline was started. By using these, we can magically tell the playbook what environment to configure.| |$VAULT_PASSWORD|Of course, this is not a standard variable of gitlab, we define this variable in gitlab with the project in the "Settings \ CI/CD \ Variables", where we make sure that it has "Masked and Expanded" as settings. This is where we store the vault password, with which the passwords or files are encrypted in ansible.|

upload_colection.yml

---
- hosts: "{{ instance }}"
  connection: local
  gather_facts: false

  pre_tasks:
    - name: Find collection file
      ansible.builtin.find:
        paths: "."
        patterns: '*.tar.gz'
      register: _file

    - name: Load vars form galaxy.yml
      ansible.builtin.include_vars:
        file: galaxy.yml
        name: galaxy_vars

    - name: Set the automation hub vars
      ansible.builtin.set_fact:
        coll_file: "{{ _file.files[0].path }}"

  roles:
    - { role: infra.ah_configuration.collection, ignore_errors: true }

The ignore_errors here is unfortunately necessary for the playbook to run smoothly, this is caused by a bug in the infra collection.

meta/runtime.yml

This specifies the dependency of your collection towards ansible.

---
requires_ansible: ">=2.14.0"

In the roles directory you create your roles you want to be in this collection.
In the plugin directory add the plugins to add into the collection.

The frameworks is now complete.

Add organization fully automated

23-04-2026 updated
Adapted the code for new repository layout.

documentation

It is the purpose in life of any automation engineer to be able to put our feet on the desk and say "Look mammy, No hands", as everything is automated.
So if my boss comes in saying we need to create a new team repository in rhaap, we just log in, klick on the appropriate rocket and let the automation do the work for us. In these pages I will describe how to enable this.

As I already described, when adding a team to this rhaap configuration, we need to create a new repository, with all the needed files in there to configure the organizations templates and so on..
We could clone a repository from another team (or a template repository) and start configuring the teams properties. The better way is generating this from code and never touch the repository's content. We still need to give the target team access to the newly created repository in gitlab.

When the repository is created, the team must be able to log in to rhaap, so this needs to be configured too.

We created a playbook to handle it all for the installation that is described in these pages.

This playbook is hosted in a gitlab repository that has the following content:

.
├── env_vars.yml
├── files
│   ├── main.yml.txt
│   └── README.md
├── main.yml
├── get_gitlab_api_token.yml
├── other_vars.yml
├── README.md
└── templates
    ├── aap_auth.yml.j2
    ├── aap_env.yml.j2
    ├── controller_credential_input_sources.yml.j2
    ├── controller_credentials.yml.j2
    ├── controller_hosts.yml.j2
    ├── controller_inventory_sources.yml.j2
    ├── controller_inventories.yml.j2
    ├── controller_labels.yml.j2
    ├── controller_notifications.yml.j2
    ├── controller_projects.yml.j2
    ├── controller_roles.yml.j2
    ├── controller_schedules.yml.j2
    ├── controller_templates.yml.j2
    ├── controller_workflows.yml.j2
    └── repo_inventory.yaml.j2

As you can see, it has a number of templates (these are the templates used for the new repository), a main.yml and a few support files. The README.md should be clear, these describe the working of the code and will not be listed here.

Here is a table with all files listed and links to the content and descriptions:

Filename	link
env_vars.yml	env_vars.yml
main.yml.txt	main.yml.txt
main.yml	main.yml
get_gitlab_api_token.yml	get_gitlab_api_token.yml
other_vars.yml	other_vars.yml
aap_auth.yml.j2	aap_auth.yml.j2
aap_env.yml.j2	aap_env.yml.j2
controller_credential_input_sources.yml.j2	controller_credential_input_sources.yml.j2
controller_credentials.yml.j2	controller_credentials.yml.j2
controller_hosts.yml.j2	controller_hosts.yml.j2
controller_inventory_sources.yml.j2	controller_inventory_sources.yml.j2
controller_inventories.yml.j2	controller_inventories.yml.j2
controller_labels.yml.j2	controller_labels.yml.j2
controller_notifications.yml.j2	controller_notifications.yml.j2
controller_projects.yml.j2	controller_projects.yml.j2
controller_roles.yml.j2	controller_roles.yml.j2
controller_schedules.yml.j2	controller_schedules.yml.j2
controller_templates.yml.j2	controller_templates.yml.j2
controller_workflows.yml.j2	controller_workflows.yml.j2
repo_inventory.yaml.j2	repo_inventory.yaml.j2

If all of the above is copied into a repository, you should be able to create a project in rhaap to run this playbook. First you should configure all variables for your environment into the env_vars.yml and other_vars.yml. With the addition af the right credentials, this play will create a new organization at each run, by providing just 2 survey variables:
- organization_short_name
- team_password

For testing purposes, you might want to set the pipeline variable to a pipeline script that does nothing. This enables you to check the created files for errors.

Add eda capability to an ogranization (automated)

Updated: 23-04-2026
Updated to latest code

As we have automated almost everything, we don't want to start now, adding files by hand. We created a playbook to add this capability to a organization without lifting a finger.

All we need to do, is run the playbook and teel the playbook to wich organization the files must be added.
The playbbok does the heavy lifting.

the repository

The repository for this play looks like this:

.
├── env_vars.yml
├── gitlab_get_api_token.yml
├── main.yml
├── README.md
└── templates
    ├── eda_controller_tokens.yml.j2
    ├── eda_credentials.yml.j2
    ├── eda_decision_environments.yml.j2
    ├── eda_event_streams.yml.j2
    ├── eda_projects.yml.j2
    ├── eda_rulebook_activations.yml.j2
    ├── main.yml.j2
    └── stop_running_rulebooks.yml

Steps

When the main.yml is started, it will perform a number of actions:
- Checkout the existing config as code repository for the organization - Add new files for EDA config as code - Replace existing playbook main.yml - Add support playbook - create new branch and push the repository - create a merge request and run the pipeline into development

After running this play, the organization can start adding their event driven automations as configuration as code into the rhaap platform.

Files

To make this automation possible, we need a number of variable defined, these are gathered in the file:

env_vars.yml

This file is a subset of the variable file that is used in the 'Add organization automated' chapter. The same variables will be needed here, in a later stage we will ook into this to reduce the doubling of these variables. For now, we need them here..

The organization_short_name value needs to be passed to the play as 'extra_vars'.

---
organization_long_name: 'org_{{ organization_short_name }}'
gitlab_protocol: 'https://'
gitlab_url: 'gitlab.homelab/'
gitlab_group: 'cac_26'
gitlab_default_branch: dev
gitlab_validate_certs: false
team_project_name: "rhaap_cac_{{ organization_long_name | lower }}"
aap_env:
  dev:
    rhaap_hostname: rhaap_dev.homelab
  prod:
    rhaap_hostname: rhaap_prod.homelab
code_environment_vars:
  all:
  dev:
  prod:

gitlab_get_api_token.yml

This play is used in several plays and creates a session token to gitlab, this token is then used for checking the pipeline status.

- name: GitLab Post | Obtain Access Token
  ansible.builtin.uri:
    url: "{{ gitlab_protocol }}{{ gitlab_url }}oauth/token"
    method: POST
    validate_certs: false
    body_format: json
    headers:
      Content-Type: application/json
    body: >
      {
        "grant_type": "password",
        "username": "{{ gitlab_user_username }}",
        "password": "{{ gitlab_user_password }}"
      }
  register: gitlab_access_token
  no_log: true

- name: Store the token in var
  ansible.builtin.set_fact:
    token: "{{ gitlab_access_token.json.access_token }}"
  no_log: true

The main playbook that wil add the files:
main.yml

The templates used to create the files: Will be added soon

deleting an organization from rhaap

This playbook, removes a defined organization from rhaap.
It removes a organization using almost the same code as creating an organization, running in reverse order.
It uses 6 phases to accomplish this:

1- Disable the pipeline on the config as code team repository
2- Remove the organization admin user from vault
3- Remove the namespace from the external vault
4- Remove the organization from rhaap
5- Cleanup the Config as code files for gateway, removing the now obsolete items
6- Cleanup stale items from controller, wich are not removed after removing the organization. And disable the organizations repository pipeline.

The survey will only ask for the short_team_name, this is all the play needs to function.
The pipelines are run against the development environment at this time, it has to run against all defined environments for each phase.

dependencies

This playbook depends on 4 credentials these must be added to the job_template.
- gitlab_mgt_automation
- aap_credential
- vault_token
- ansible

Phase 1

As we leave the config as code repository for later use, we disable the pipeline on it.
So it can't run anymore.

Phase 2

We remove the user/password combination from the vault, so the user is not recreated automaticly.

Phase 3

We remove the namespace for this organization from the vault, including all secrets in the namespace.

Phase 4

We use the infra.aap_configuration collection to remove the admin user from rhaap.

Phase 5

Checkout rhaap base configuration into temp directory.
Clean the yaml files in the rhaap base config as if the organization never existed.
Push the updated files into GIT.
Remove temp directory

Phase 6

Remove projects, workflow_templates and job_templates that remain after removing the organization.
Disable the pipeline on the CaC repository of the team.
The organization is now removed and no longer accessible.

The files used

Below the files as they are used for this automation:

cleanup_controller.yml
get_gitlab_api_token.yml
env_vars.yml
main.yml
rhaap_absent_organization.yml
vault_delete_local_admin_user.tyml
vault_delete_namespace.yml

Recovery

Nothing beats a good backup strategy!

Config as code is your insurance that everything you (and your developers), have everything in code and is recoverable in case of a major disaster.

Recovery procedure for RHAAP 2.6 without backup

When the configuration of an entire Ansible Automation Platform installation is lost, you can reinstall it and then click everything together by hand, but then it will take weeks and there will be no garanty that the configuration is the same as when it failed.
In very few cases, everything is so well documented that you can click everything back together in a UI to create the same situation as before the crash. "Configuration As Code" has been devised and created for this.
Now, after the reinstallation, we can run all the configuration as code again. But even that is quite a time-consuming job in a large environment, since all configuration is housed in separate repositories, this can become a time-consuming task to do all this by hand. To prevent this, we have developed this recovery procedure, which reduces manual work to a minimum.
A requirement for correct operation is that every organization that is known in RHAAP has a repository in gitlab with the correct name and content. Also, a correct version must be merged with the target environment that needs to be restored, otherwise the recovery of that organization will fail.

The recovery of rhaap version 2.6 has become simpler, since we can now recover without any manual steps.
The playbook is adapted to this new situation.

Steps to a full recovery

The steps to recovery below, must be executed in the order shown, this has to do with components being availlable when defining objects in rhaap.

A complete recovery of an environment consists of the following steps, which should preferably be carried out automatically:
1. Restoring a namespace on Openshift (or a VM)
2. Installing and running the operator for RHAAP (installation playbook)
3. Restoring the configuration of rhaap base using config as code
4. Restoring any custom collections
5. Restore all custom execution environments
6. Running the config as code for all teams

In step 3, the base configuration of rhaap is loadded, including the private hub configuration. The private hub needs time to run de sychronization process with galaxy to download all collections configured.
During this time we can run the automated creation of EE_images and collections and upload these into private hub.
When this is completed, the configuration for all teams should be loaded into rhaap.

The automation of recovery

Of course, it would be useful to be able to start this recovery from a different environment of AAP. In this way, the loss of one environment can be recovered from another, still running environment. Since we have housed all configuration as code in GIT, with pipelines that configure it in AAP whithout the intervention of other systems.
We can start the recovery by triggering these pipelines in the right order. Since GIT is the executor and not AAP, there is no need to arrange access between AAP environments.

The big picture

In order to restore the environment, we had already seen that the necessary steps must be taken to achieve full recovery. We're not going to go into the recovery of the installation of RHAAP here, in this repository we are going to pick up the recovery from the moment AAP is reinstalled and ready to be configured.

This involves the following (automated) steps:
1. RHAAP automated Configuration Recovery
If you want to trigger a pipeline from the outside via the gitlab API, you need to create a separate gitlab token for each pipeline and keep it in the play in which you want to run this trigger. That amounts to a lot of administration, where the tokens will also expire. We certainly don't want this, we want to be able to assume that once our code has been started, it will continue until everything is executed. That won't be the case if new tokens are continuously requested. Then there is no longer any real automatic recovery.
To prevent this, it is possible in gitlab to have projects trigger each other, as if it were a dependency, no registered token is needed. A project gets such a token implicitly.this functionality is intended for dependencies, but we are going to abuse it for the recovery process, because it saves a lot of administration.
What are we going to do?
1. We are creating a new gitlab project for part recovery
2. We write a pipeline with a dependency on the gitlab project we want to execute (or projects)
3. Pushing it to gitlab
4. Waiting for the pipeline to be executed
5. Delete this temporary project

We do this for every recovery step.
For the recovery steps, we create job template(s) in RHAAP with a survey for each environment. We only do this for the MGT (management) organization, so that only system administrators have access.
We have brought the recovery steps together in a repository, where the steps are recorded in a playbook. We are going to explain these here.

Generic data

Both playbooks need some configuration data that defines the environment they need to function in. Since it's almost the same for both, we've merged it into 1 file: env_vars.yml

---
# put your vars in here and make sure this file is ALWAYS vault encrypted
# the values in this file will be encrypted and used in the config files.
gitlab_protocol: 'https://'
# ensure the gitlab_url has the final "/"
gitlab_url: 'gitlab.homelab/'
rhaap_project_name: run_gateway_recovery
gitlab_group: cac_26
gitlab_user: "{{ lookup('community.hashi_vault.hashi_vault', 'secret=kv/data/gitlab:username') }}"
gitlab_password: "{{ lookup('community.hashi_vault.hashi_vault', 'secret=kv/data/gitlab:password') }}"

# List repositories to run the pipeline for, including the gitlab group
# name. This list is populated with:
# - the base configuration for rhaap gateway and hub
# - ee environments
# - collections
# - organization repositories
# to be loaded into the hub.
repositories:
  - cac_26/rhaap_base_conf
  - images/ee_cac_image
  - collections/example.coll_1
  - collections/example.coll_2

org_repositories:
  - cac_26/rhaap_cac_mgt
  - cac_26/rhaap_cac_infra
  - cac_26/rhaap_cac_lnx

  # Examples for additional repositories:
  # - images/ee_cac_image
  # - collections/shs.infra
  # - collections/shs.rhel

Above is the data that makes the operation within the environment possible. First of all, the gitlab environment is defined, the user data is important, in gitlab a user must be created who has sufficient rights to be able to perform this. Creating and using such a user prevents someone from having to use their personal credentials for this, which is of course even more undesirable. In order for this to be secure, this data must be encrypted.
Secondly, the definition of the setup of gitlab for config as code. The configuration as code repositories should be housed in this gitlab group. This also allows the code to be kept simple, without too much administration.
The repositories variable is an exception to the rule, which is not only about config as code, but also about the organization's 'own' affairs. Self-built collections and execution environments must also be available in the automation hub before you can fully restore the controller. Here we keep track of all these. This is the only piece of administration that we will have to keep track of.

hosts.yaml:

all:
  hosts:
    localhost

When we talk about an 'empty' inventory, this is the most basic form. Since ansible requires an inventory, we'll give it to him. This is where the generic part of this repository ends and we are going to deal with the recovery parts.

Recovery code rhaap_base config

Below is the playbook that is used to fully automate the recovery of the gateway and the automation hub.
recover_gateway.yml:

This playbook doen't do the actual work, it creates a gitlab project with a pipeline that will trigger the pipelines of the configured projects to run their configurationas code.
This wil just reuse the configuration that was running last time the environment was reconfigured, so this should always work.

recover_rhaap.yml

---
- name: Recover automation platform configuration
  hosts: localhost
  connection: local
  gather_facts: false

  pre_tasks:
    - name: Get vars
      ansible.builtin.include_vars: "env_vars.yml"

    - name: "Create GitLab Project in group {{ gitlab_group }}"
      community.general.gitlab_project:
        api_url: "{{ gitlab_protocol }}{{ gitlab_url }}"
        validate_certs: false
        api_username: "{{ gitlab_user }}"
        api_password: "{{ gitlab_password }}"
        name: "{{ rhaap_project_name }}"
        group: "{{ gitlab_group }}"
        default_branch: "{{ gitlab_env_branch }}"
        shared_runners_enabled: true
        initialize_with_readme: true
        state: present

    - name: Clone the new gitlab repository
      ansible.builtin.git:
        repo: "{{ gitlab_protocol }}{{ gitlab_user }}:{{ gitlab_password }}@{{ gitlab_url }}/{{ gitlab_group }}/{{ rhaap_project_name }}.git"
        dest: "/tmp/{{ rhaap_project_name }}"
        version: "{{ gitlab_env_branch }}"
        clone: true
        update: true
      environment:
        GIT_SSL_NO_VERIFY: 'true'

  tasks:

    - name: Template the gitlab-ci.yml for all organizations
      ansible.builtin.template:
        src: gitlab-ci-rhaap.yml.j2
        dest: "/tmp/{{ rhaap_project_name }}/.gitlab-ci.yml"
        mode: '0644'

    - name: Push the updated GitLab repository     # noqa: command-instead-of-module
      ansible.builtin.shell: |
        git config --global user.name "{{ gitlab_user }}"
        git config --global user.email "{{ gitlab_user }}@example.com"
        git add --all
        git commit -m 'initial config'
        git -c http.sslVerify=false push origin "{{ gitlab_env_branch }}"
      args:
        chdir: "/tmp/{{ rhaap_project_name }}"
      changed_when: false

    - name: Delete the tempory directory
      ansible.builtin.file:
        path: /tmp/{{ rhaap_project_name }}
        state: absent

    - name: Sleep for 10 sec
      ansible.builtin.pause:
        seconds: 60

    - name: GitLab Post | Obtain Access Token
      ansible.builtin.uri:
        url: "{{ gitlab_protocol }}{{ gitlab_url }}/oauth/token"
        method: POST
        validate_certs: false
        body_format: json
        headers:
          Content-Type: application/json
        body: >
          {
            "grant_type": "password",
            "username": "{{ gitlab_user }}",
            "password": "{{ gitlab_password }}"
          }
      register: gitlab_access_token

    - name: Store the token in var
      ansible.builtin.set_fact:
        token: "{{ gitlab_access_token.json.access_token }}"

    - name: Check the pipeline until it has run
      ansible.builtin.uri:
        url: "{{ gitlab_protocol }}{{ gitlab_url }}/api/v4/projects/{{ gitlab_group }}%2F{{ rhaap_project_name }}/pipelines"
        validate_certs: false
        headers:
          Authorization: "Bearer {{ token }}"
      register: _jobs_list
      until: _jobs_list.json[0].status == "success"
      retries: 200
      delay: 30

    - name: "Delete GitLab Project from group {{ gitlab_group }}"
      community.general.gitlab_project:
        api_url: "{{ gitlab_protocol }}{{ gitlab_url }}"
        validate_certs: true
        api_username: "{{ gitlab_user }}"
        api_password: "{{ gitlab_password }}"
        name: "{{ rhaap_project_name }}"
        group: "{{ gitlab_group }}"
        default_branch: "{{ gitlab_env_branch }}"
        shared_runners_enabled: true
        initialize_with_readme: true
        state: absent

Finally, we make sure that the recovery project in gitlab is neatly deleted, so that we can also see that the playbook has ended neatly. If the project is still standing, an error has occurred somewhere and the pipeline logs of this project can be used to see which part did not come to a successful conclusion. The only thing we need for execution is a correct template to be able to write the pipeline in the repository.

templates/gitlab-ci-rhaap.yml.j2:

This is the template that is used in the previous playbook to template out the pipeline into the new recovery project.
This generates a pipeline to trigger all related projects.
Update the tag and image to match your runner configuration:

# Pull the ansible config as code image
# change this to suit you installation, for a runner on openshift or docker you will need an image
image: docker.homelab:5000/cac-image:1.3

# List of pipeline stages
stages:
{% for repo in repositories %}
  - {{ repo | lower }}
  - sleep_{{ repo | lower }}
{% endfor %}
{% for repo in org_repositories %}
  - {{ repo | lower }}
  - sleep_{{ repo | lower }}
{% endfor %}

{% for repo in repositories %}
{{ repo | lower }}:
  tags:
    - shared
  stage: {{ repo |lower }}
  trigger:
    project: {{ repo | lower }}
    branch: {{ gitlab_env_branch }}
    strategy: depend
  when: always

sleep_{{ repo | lower }}:
  tags:
    -shared
  stage: sleep_{{ repo |lower }}
  script:
    - sleep 20
  when: always

{% endfor %}
{% for repo in org_repositories %}
{{ repo | lower }}:
  tags:
    - shared
  stage: {{ repo |lower }}
  trigger:
    project: {{ repo | lower }}
    branch: {{ gitlab_env_branch }}
    strategy: depend
  when: always

sleep_{{ repo | lower }}:
  tags:
    -shared
  stage: sleep_{{ repo |lower }}
  script:
    - sleep 20
  when: always

{% endfor %}

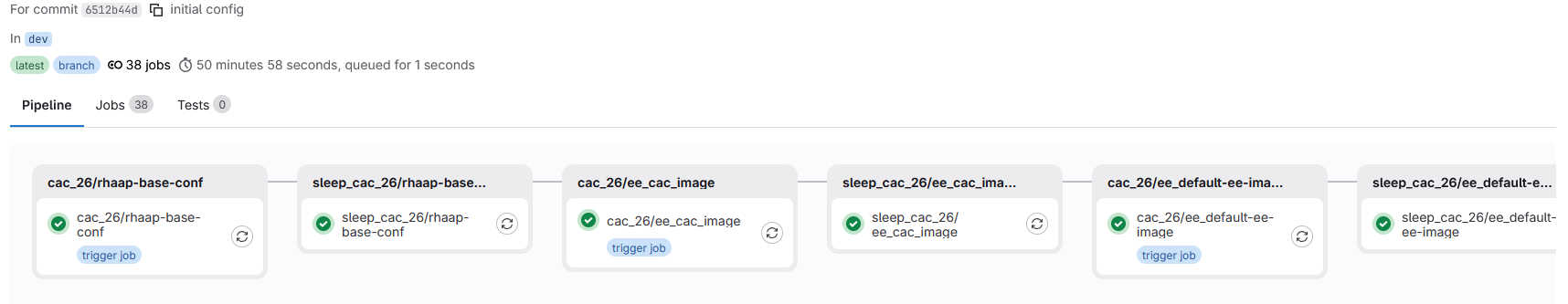

The template as shown above ensures that the specified projects in the repositories variable are called in order, which initiates and executes the pipeline for the said branch. There is a 20-second pause between each call to such a dependent project.
After the bese configuration, EE's and collections are loaded, we can start loading the organizations.
This is not always necessary and perhaps environment dependent, in the environment where this was built and tested, it was indeed necessary to take a break between some projects. Since we don't do 'some', it's all.

Obtain API Token

Not all environments allow you to specify the token in advance which should be used in the automation hub, so a manual step has to be inserted. If you could set it during the installation, keep it the same as the token you specified on the gitlab group for the config as code. Then this step is no longer necessary and you can continue entirely on the machine...
The big manual step...
Log in to the newly configured automation hub and generate a new token and commit it to the gitlab group for the Configuration As Code repositories. As a result, the new token will be included in all pipelines that are yet to be executed.
Then we can continue with the playbook below to restore the controller configuration.

Automatically sync collections with RedHat

As you probably know, the token used for synchronization with the RedHat collections is only valid for 30 days if you don't use it. So you need to sync your collections to the redhat automation hub at least once every 29 days. We wouldn't be automation techs if we didn't automate this too... On the redHat site, there is a solution with a curl command, but it doesn't conform to ansible best practices. So we need a playbook that we can schedule in the controller and that is neatly implemented with a credential.

To be able to do this in all environments, we need the following:
1. A credential type to store the token
2. A credential in each controller
3. A project in git with the playbook
4. A project and job template in controller and a schedule for this

Credential type

Add the credential type definition below to the base config for controller:
(As you read the config as code, you will find its allready in there)
controller_credential_types_all:

  - name: automation_hub
    description: automation hub
    kind: cloud
    inputs:
      fields:
        - id: verify_ssl
          type: boolean
          label: Verify SSL
        - id: hostname
          type: string
          label: Hostname
        - id: username
          type: string
          label: Username
        - id: password
          type: string
          label: Password
          secret: true
        - id: token
          type: string
          label: Token
          secret: true
      required:
        - hostname
    injectors:
      approx:
        AH_PASSWORD: !unsafe "{{ password }}"
        AH_USERNAME: !unsafe "{{ username }}"
        AH_HOST: !unsafe "{{ hostname }}"
        AH_API_TOKEN: !unsafe "{{ token }}"
        AH_VERIFY_SSL: !unsafe "{{ verify_ssl }}"
      extra_vars:
        ah_password: !unsafe "{{ password }}"
        ah_username: !unsafe "{{ username }}"
        ah_host: !unsafe "{{ hostname }}"
        ah_token: !unsafe "{{ token }}"
        ah_validate_certs: !unsafe "{{ verify_ssl }}"

This will add the credential type to the automation controller in each environment.

Add the credential to all controller environments Ensure that the newly created credential_type-based credential is added to all controller environments. So in the group_vars/all/credentials.yaml:

- name: automation_hub_sync_token
  description: ""
  credential_type: automation_hub
  organization: "<Org_name>"
  inputs:
    hostname: '<automation_hub_url>'
    token: "{{ ahub_token }}"
    verify_ssl: false

Use the variable "{{ ahub_token }}" here, as indicated, and it will be filled correctly in the controller (provided you follow the guides on this site). How this works is explained in the configuration of the controller.

Create the GIT project

Create a project in GIT and make sure the following playbook is in this repository along with a relevant README.md.

---
- name: Sync collections on private hub
  hosts: localhost

  tasks:

  - name: Sync content rh-certified
    ansible.builtin.uri:
      url: "https://{{ ah_host }}/api/galaxy/content/rh-certified/v3/sync/"
      method: POST
      headers:
        Authorization: "Token {{ ah_token }}"
      validate_certs: "{{ ah_validate_certs }}"
      return_content: true
    register: sync_rhcertified

  - name: Debug output
    ansible.builtin.debug:
      var: sync_rhcertified

  - name: Sync content community
    ansible.builtin.uri:
      url: "https://{{ ah_host }}/api/galaxy/content/community/v3/sync/"
      method: POST
      headers:
        Authorization: "Token {{ ah_token }}"
      validate_certs: "{{ ah_validate_certs }}"
      return_content: true
    register: sync_community

  - name: Debug output
    ansible.builtin.debug:
      var: sync_community

To make sure that this playbook doesn't require any external inventory, we create a hosts.yml in the repository, which we can populate with the names of the automation hubs.

dev:
  host: <automation_hub_host_url_dev>
test:
  host: <automation_hub_host_url_test>

Controller configuration

Everything we've created so far is now coming together in this part of the configuration, we'll now create the schedule in the controller, after which we can safely forget what we've done and be sure that the token will never expire. We will add these to the organization in the controller that will also house the admins (superusers), for the sake of convenience we will call it the MGT organization. First, we need to add the project:
group_vars/all/projects.yaml:

  - name: MGT_sync_automation_hub
    description: "Sync the automation hub weekly"
    organization: ORG_MGT
    scm_type: git
    scm_url: git@gitlab.homelab:sync_ahub_galaxy.git
    scm_credential: MGT-Gitlab
    scm_branch: main
    scm_clean: false
    scm_delete_on_update: false
    scm_update_on_launch: true
    scm_update_cache_timeout: 0
    allow_override: false
    timeout: 0

Before we can create the job template, we need to create an inventory, because a job template must be linked to an inventory in the controller. group_vars/all/inventories.yaml:

controller_inventories_all:
  - name: MGT_inventory_ahub_sync
    description: MGT single purpose inventory
    organization: ORG_MGT

group_vars/all/inventory_sources.yaml:

controller_inventory_sources_all:
  - name: MGT_inventory_ahub_sync
    description:
    organization: ORG_MGT
    source: scm
    source_project: MGT_sync_automation_hub
    source_path: hosts.yml
    inventory: MGT_inventory_ahub_sync
    update_on_launch: true
    overwrite_vars: true
    overwrite: true

Now we can add the job template to the configuration:

group_vars/dev/templates.yaml:
  - name: MGT_sync_automationhub
    description: Sync automation hub automaticly
    organization: ORG_MGT
    project: MGT_sync_automation_hub
    inventory: MGT_inventory_ahub_sync
    playbook: main.yml
    job_type: run
    fact_caching_enabled: false
    credentials:
      - automation_hub_sync_token
    concurrent_jobs_enabled: false
    ask_scm_branch_on_launch: false
    ask_tags_on_launch: false
    ask_verbosity_on_launch: false
    ask_variabelen_on_launch: false
    extra_vars:
    execution_environment: Default execution environment
    survey_enabled: false
    survey_spec: {}

And finally, take care of the scheduling of the job template we just created, so we can forget about it:
group_vars/dev/schedules.yaml:

controller_schedules_dev:

  - name: MGT Sync Private Hub
    description: Sync Private hub repos
    unified_job_template: MGT_sync_automationhub
    rrule: "DTSTART:20231212T110000Z RRULE:FREQ=DAILY; INTERVAL=1; BYDAY=TU,TH"

The rule in this example ensures that the synchronization of the collections is done twice a week, on Tuesdays and Thursdays. The start time is in the past, so the schedule will be executed on the next Tuesday or Thursday at 11:00 AM, as that is the time specified for this.

This way your galaxy token will never expire.
